Wall Support 50-80mm – Ø 150 / Twin Wall Black Matt
£ 31,00

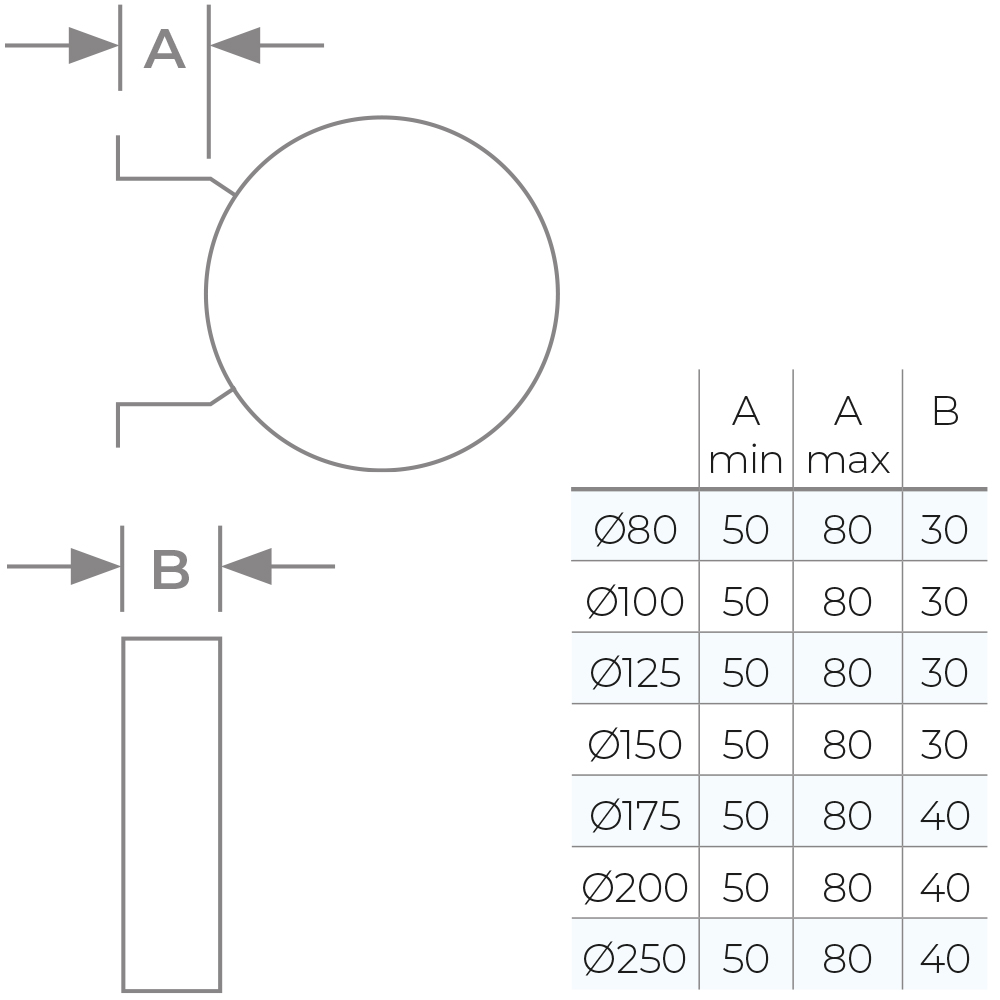

Wall support are to be used for lateral support only and should be use a minimum of every 3 metres. Only recommended fixings should be used to fit the wall support to the building surface. This wall band allows you to set a distance of 50mm (minimum) and 80mm (maximum) adjustment from the wall surface allowing a 30mm adjustment.
Description
APPLICATION
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil and gas boiler and any solid fuel appliances.
CONSTRUCTION
Outer skin is made from 304 grade stainless steel and is 0.4mm thick. Inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool giving a density of 200kg/m3 TWPro / 128Kg/m3. All parts are fully welded.
Distance to combustibles is 50mm TWPro 60mm on KC
APPROVALS
TWPro is HETAS Approved and is CE marked.
Designation Number
TWPro EN1856-1 T600 N1 W V2 L50040 G50.
TWPro EN1856-1 T200 W V2 L50040 O20.
KC EN1856-1 T600 N1 W V2 L50040 G60.
KC EN1856-1 T200 W V2 L50040 O20.
INSTALLATION
TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band.
Make sure that you keep the required distance from the outside of the flue to any combustible material (wood, plaster board).
