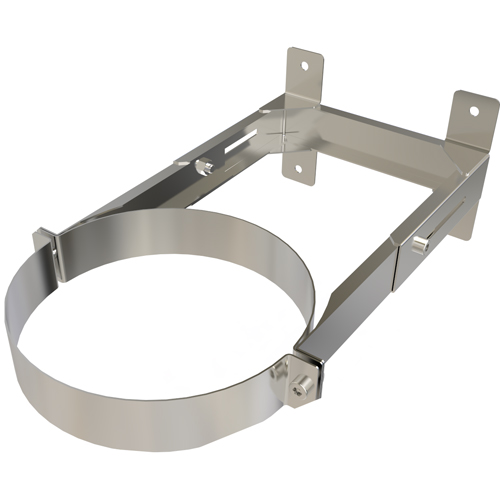

Wall Support 130-210mm – Ø 125 / Twin Wall Black Matt

£ 73,00

Product Details

SKU55-125-053
ItemWall Support 130-210mm – Ø 125
Designation:EN1856-1 T600 N1 W V2 L50040 TWPro G50/ KC G60
System:TWPro / KC
Inner Material:316L Stainless Steel – 0.40mm thick
Outer Material:304 Stainless Steel – 0.40mm thick
Fuels:Wood, Oil, Gas, Low sulpher coal
Approvals:HETAS / CE
Distance to Combustibles:TWPro 50mm / KC 60mm
Distance to Combustibles:50mm

Description

Wall support are to be used for lateral support only and should be use a minimum of every 3 meters. Only recommended fixings should be used to fit the wall support to the building surface. This wall band allows you to set a distance of 80mm (minimum) and 420mm (maximum) adjustment from the wall surface allowing a 340mm adjustment. This wall support has to be manually cut down to achieve the desired effective length.

Description

APPLICATION
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler, gas boiler and any solid fuel appliances.

CONSTRUCTION
Outer skin is made from 304 stainless Steel and is 0.4mm thick. This is then coated in a high temperature Black finish. The Inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool giving a density of 200kg/m3. All parts are fully welded.
Distance to combustibles is 50mm.

APPROVALS
TWPro is HETAS Approved and is CE marked.
Designation Number is
EN1856-1 T600 N1 W V2 L50040 G50.
EN1856-1 T200 P1 W V2 L50040 O20.

INSTALLATION
TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band (supplied).
Make sure that you keep a distance of 50mm from the outside of the flue to any combustible material (wood, plaster board).



Product Details

SKU55-125-053
ItemWall Support 130-210mm – Ø 125
Designation:EN1856-1 T600 N1 W V2 L50040 TWPro G50/ KC G60
System:TWPro / KC
Inner Material:316L Stainless Steel – 0.40mm thick
Outer Material:304 Stainless Steel – 0.40mm thick
Fuels:Wood, Oil, Gas, Low sulpher coal
Approvals:HETAS / CE
Distance to Combustibles:TWPro 50mm / KC 60mm
Distance to Combustibles:50mm



Product Dimensions
