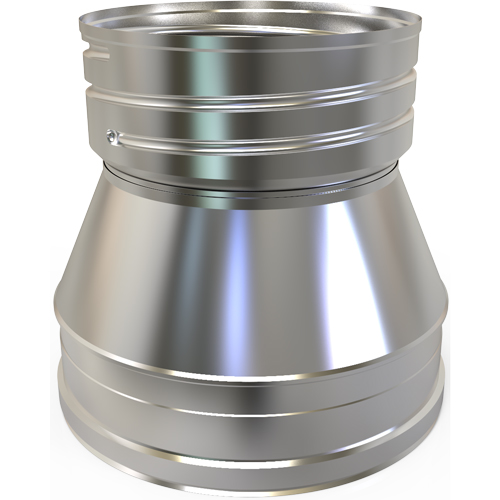

Twin Wall to Flex Adaptor-Ø 150 | Transition from TWPro to Liner (silver)
£ 84,00
Specifications:

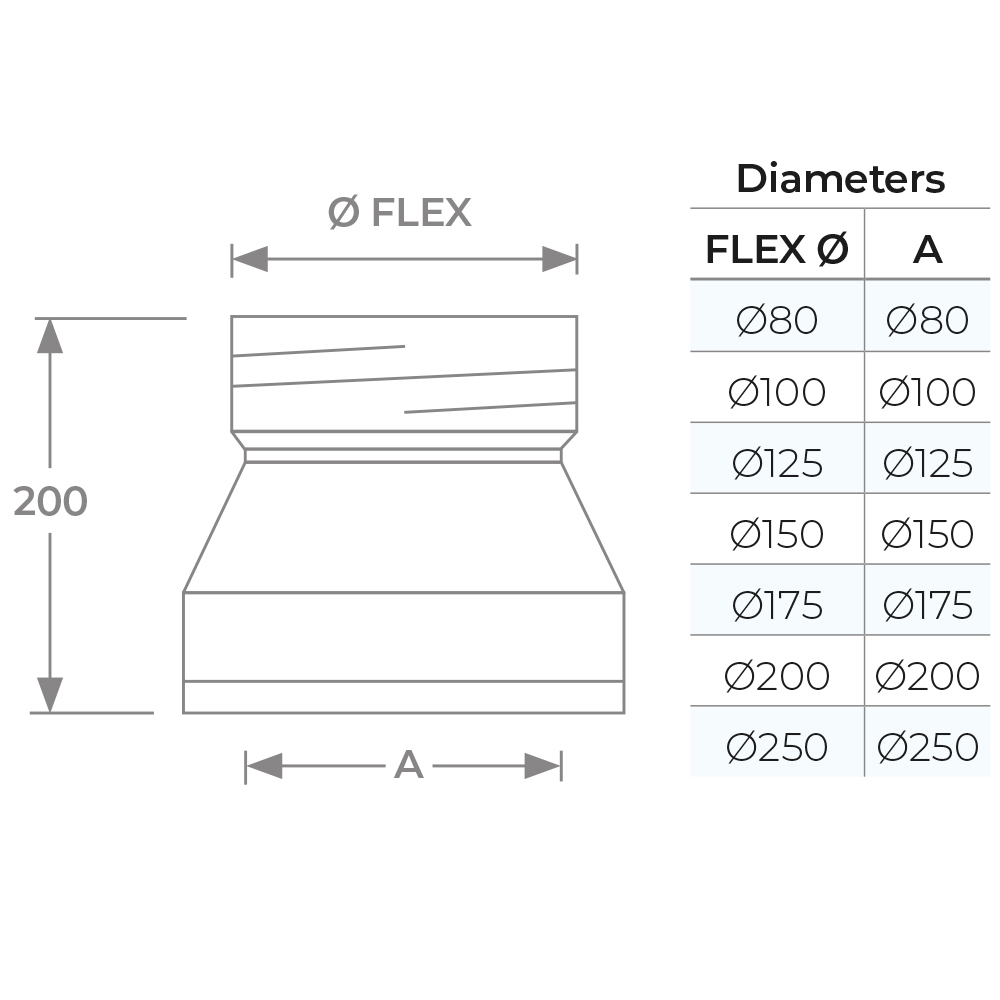

- Diameter: 150mm
- Outer Skin Material: 304 Stainless Steel, 0.4mm thick
- Inner Skin Material: 316 Stainless Steel, 0.4mm thick
- Insulation: Compressed rock wool, 200kg/m³ density
- Distance to Combustibles: 50mm
Description
Key Features
- Twin Wall to Flex Connection: Provides a secure transition from TWPro Twin Wall to MI-Flues flexible liner.
- Screw-Fix Coupling: Ensures a secure and reliable connection to the flexible liner.
- Class 1 Chimney: The transition must be made inside an existing Class 1 chimney.
- Durable Construction: Features 304-grade stainless steel outer skin and 316-grade stainless steel inner skin.
- Effective Insulation: Includes compressed rock wool insulation with a density of 200kg/m³.
- Safe Clearance: Maintains a 50mm distance from combustible materials.
- Approved & Compliant: HETAS-approved and CE-marked.
Installation
The adaptor should be installed inside the existing Class 1 chimney, with the flexible liner fully concealed. Secure the connection using the screw-fix coupling and maintain the required 50mm clearance from combustibles.
Product Overview
The Twin Wall to Flex Adaptor Ø 150 provides a reliable transition between TWPro Twin Wall chimney systems and MI-Flues multi-fuel flexible liners, combining secure connection with effective insulation and durable stainless steel construction.
