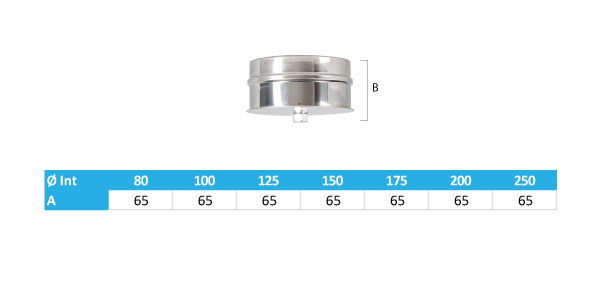

Tee Cap with Drain Ø 150 – Chimney Flue Cap with Integrated Condensate
£ 32,00
Inner Material: 316L Stainless Steel – 0.40mm thick
Outer Material: 304 Stainless Steel – 0.40mm thick
Fuels: Wood, Oil, Gas, coal
Approvals: HETAS / UKCA
Distance to Combustibles: 60mm
Warranty: 12 Years
Description
Key Features
- Tee Closure: Designed to cap the bottom or unused end of 90° and 135° tees.
- Integrated Drain: Features a 10mm threaded connection for removing excess condensate.
- Easy Access: Removable design allows convenient chimney sweeping and maintenance.
- Durable Construction: Made with a 304-grade stainless steel outer skin and a 316-grade stainless steel inner skin.
- Approved & Compliant: HETAS-approved and UKCA-marked.
Installation
Secure the Tee Cap using a locking band and connect a suitable drain pipe to the 10mm threaded outlet if required. Maintain a minimum 60mm clearance from combustible materials.
Product Overview
The Tee Cap with Drain Ø 150 provides a secure closure for 90° and 135° tees while allowing excess condensate to drain from the chimney system. Its removable design also provides easy access for cleaning and maintenance.
