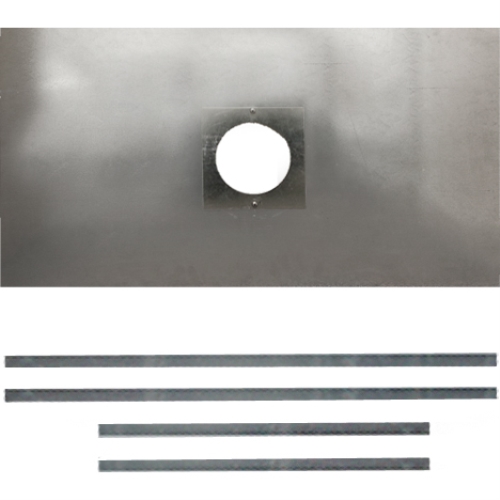

Register Plate (F) – 900×495 no access hole – Ø 125 mm- 150 mm
£ 62,00
Material: Galvanised Steel
Thickness: 1.5mm
Fixing Angles: 4
Lenght: 900mm
Width: 495mm
Hole Diameter: 125/150mm
Fuels: Wood, Oil, Gas, Smokeless coal
Approvals: CE / HETAS
Description
Key Features
- Universal Fit: Suitable for 125mm and 150mm (5″ and 6″) black stove pipes.
- Large Size: Measures 900mm × 495mm and can be cut to fit the chimney base.
- Insulation Ready: No access holes, making it suitable for use with vermiculite insulation.
- Durable Construction: Made from 1.5mm galvanised steel, including the supporting brackets.
- Adjustable Adaptor: Special adaptor accommodates both 125mm and 150mm flue pipes.
- Debris Protection: Seals the chimney base, supports vermiculite and prevents debris from falling onto the stove.
Installation
Cut the supporting brackets and register plate to suit the chimney opening. Secure the brackets to the brickwork, position the plate with the flue opening aligned, and seal any gaps with fire cement or high-temperature sealant.
For 150mm installations, remove the centre cover ring by unscrewing the two retaining screws.
Product Overview
The Register Plate 900 × 495mm provides a secure seal at the base of the chimney while supporting insulation and protecting the stove from falling debris.
