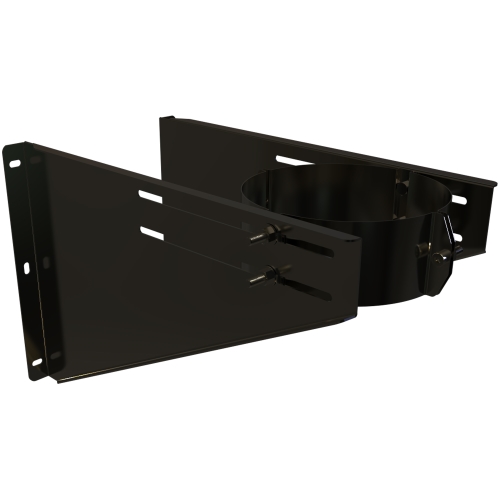

LONG Retro Fit Base Support – Ø 125 (5inch) / Twin Wall Black Matt

Description

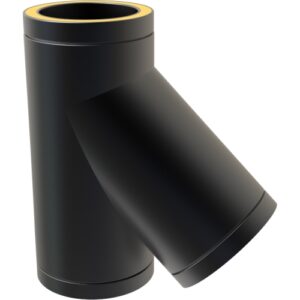

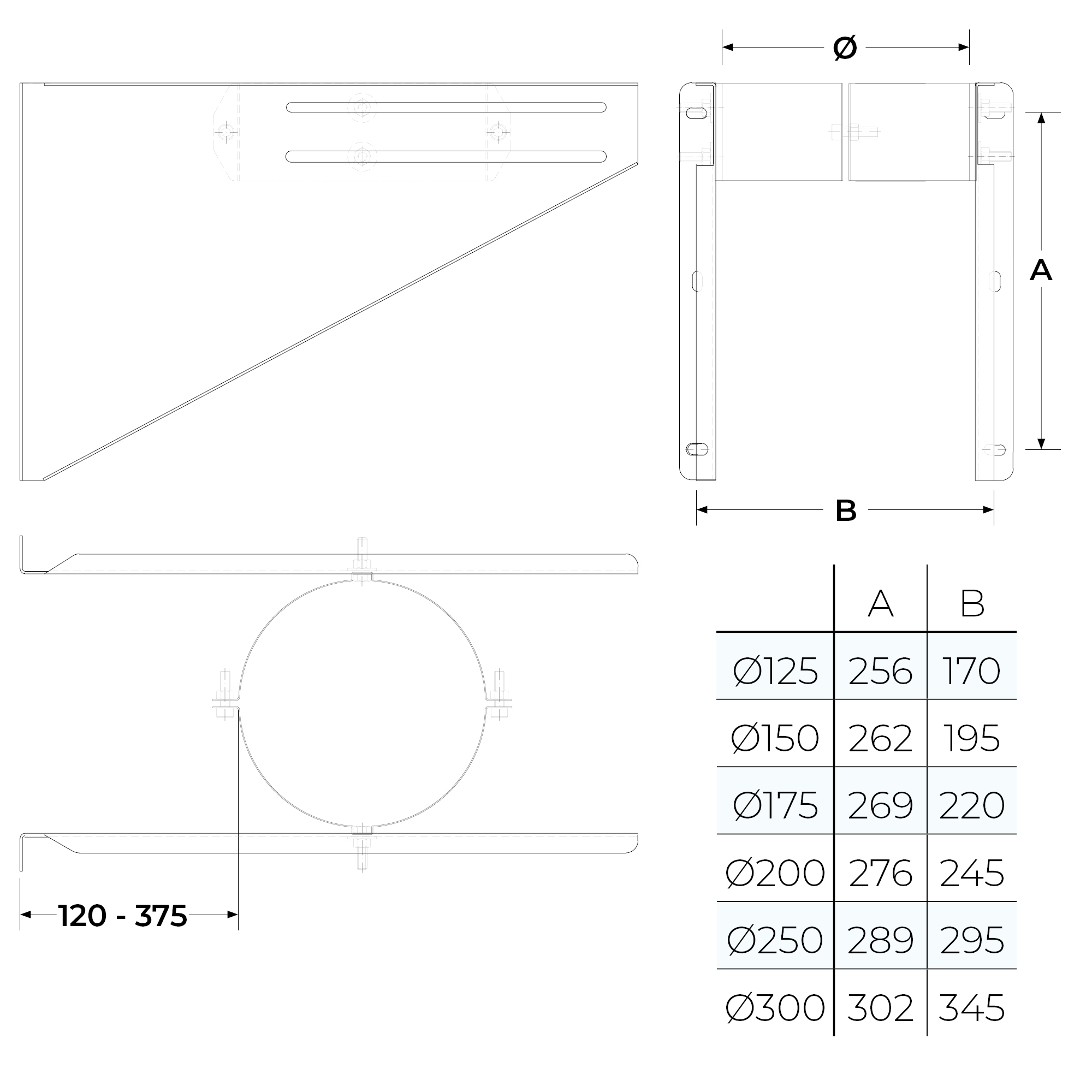

The Retrofit base support is adjustable from 120mm to 375mm from the wall, it can be used in conjunction with 90° or 135° tees when fitted directly above.
This item can also be used as a load bearing intermediate support on longer flue runs and can be retro fitted to make installation simpler.
One support to be used on most standard single story or 2 storey homes, supporting up to 9 metres of chimney immediately above the tee.
Only recommended fixings should be used.

Installation and Recommendations:

Secure Connections: All TWPro Twin Wall Insulated Chimney components, including this base support, should be secured using a Locking Band for dependable connections.
Combustible Materials: Ensure that you maintain the required distance from the outside of the flue to any combustible materials such as wood or plasterboard.
