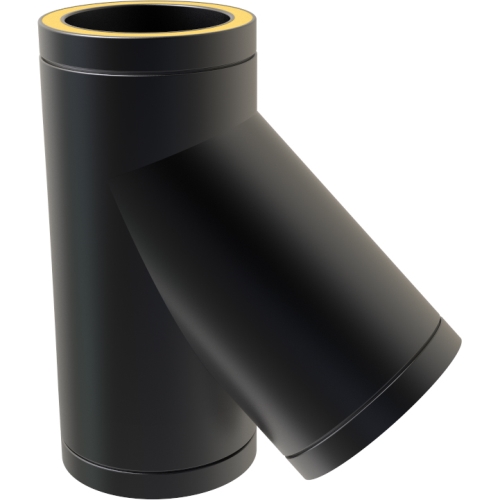

135° Tee – Ø 125 / Twin Wall Black Matt

£ 174,00

Product Details

SKU30-125-034
Item135° Tee – Ø 125
Designation:EN1856-1 T600 N1 W V2 L50040 G50
EN1856-1 T200 P1 W V2 L50040 020
System:TWPro Black
Inner Material:316L Stainless Steel – 0.40mm thick
Outer Material:304 Stainless Steel – 0.40mm thick – High Temperature Black Coated
Fuels:Wood, Oil, Gas, Low sulpher coal
Approvals:HETAS / CE
Distance to Combustibles:50mm

Description

The 135° Tee is used when you need a cleaning access at the base of the chimney. It is the first piece installed on the external wall and allows for easy cleaning of the flue. The 135° Tee is shaped in such a way that it does not restrict the flue gases.

Description

APPLICATION
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler, gas boiler and any solid fuel appliances.

CONSTRUCTION
Outer skin is made from 304 stainless Steel and is 0.4mm thick. This is then coated in a high temperature Black finish. The Inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool giving a density of 200kg/m3. All parts are fully welded.
Distance to combustibles is 50mm.

APPROVALS
TWPro is HETAS Approved and is CE marked.
Designation Number is
EN1856-1 T600 N1 W V2 L50040 G50.
EN1856-1 T200 P1 W V2 L50040 O20.

INSTALLATION
TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band (supplied).
Make sure that you keep a distance of 50mm from the outside of the flue to any combustible material (wood, plaster board).

Product Details

SKU30-125-034
Item135° Tee – Ø 125
Designation:EN1856-1 T600 N1 W V2 L50040 G50
EN1856-1 T200 P1 W V2 L50040 020
System:TWPro Black
Inner Material:316L Stainless Steel – 0.40mm thick
Outer Material:304 Stainless Steel – 0.40mm thick – High Temperature Black Coated
Fuels:Wood, Oil, Gas, Low sulpher coal
Approvals:HETAS / CE
Distance to Combustibles:50mm

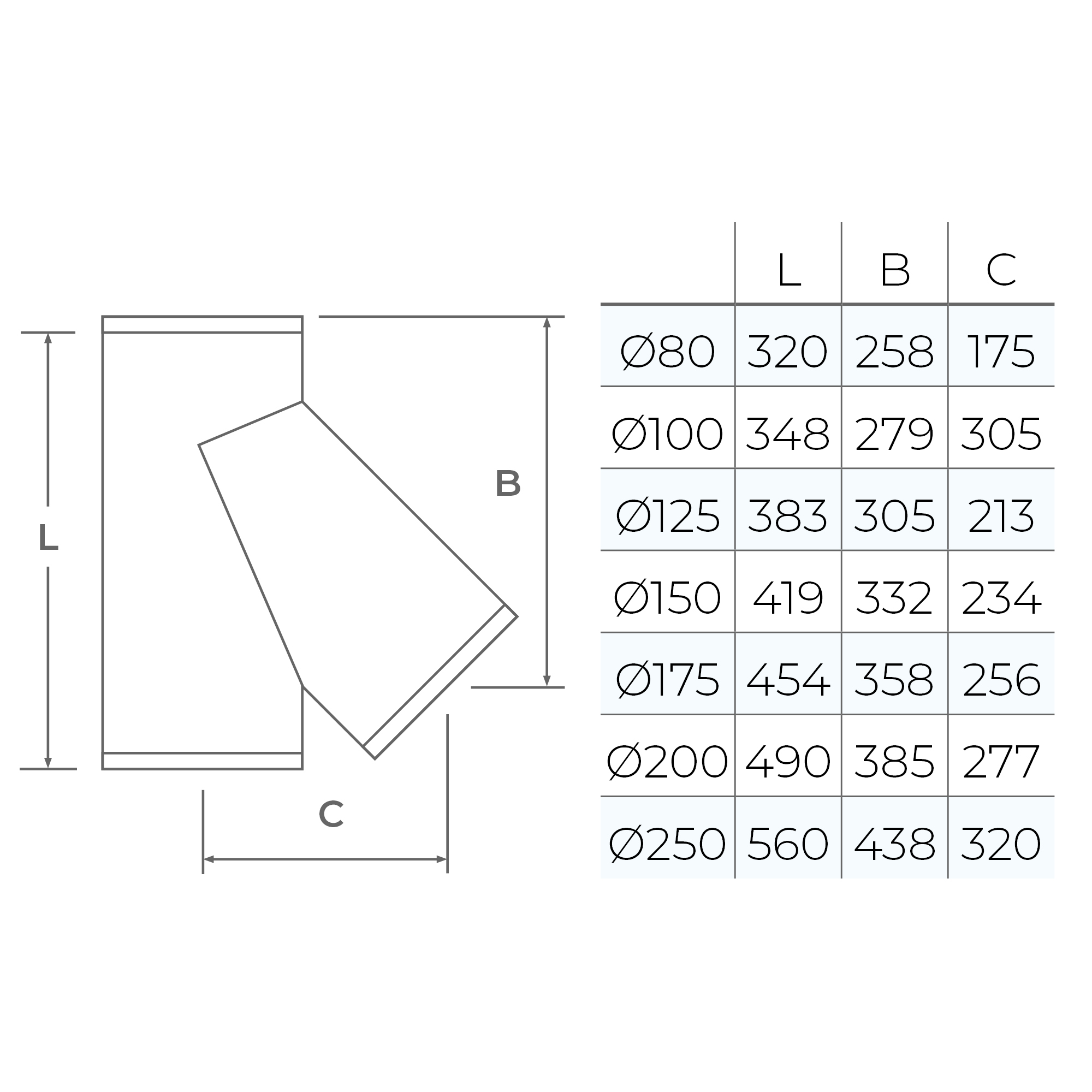

Product Dimensions
