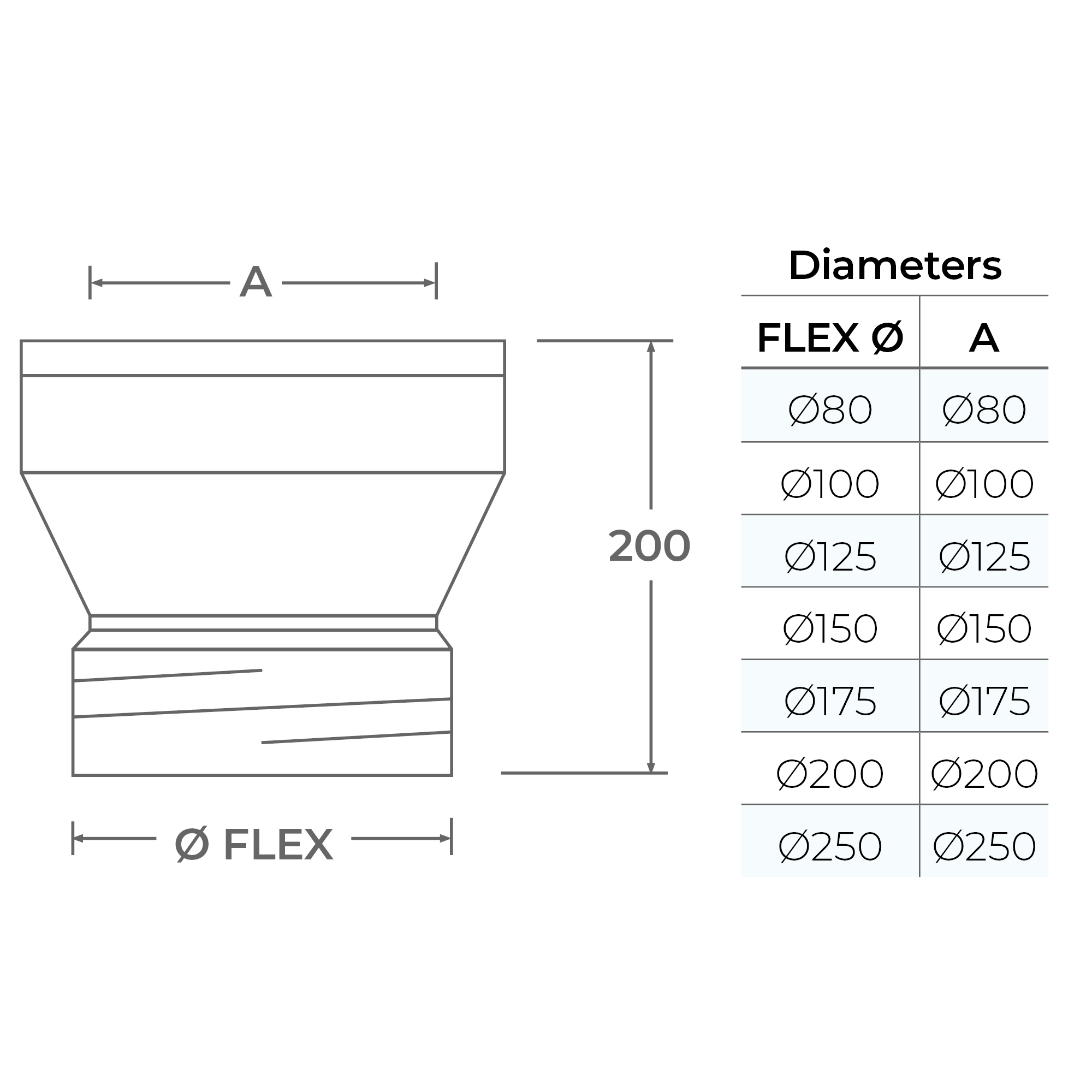

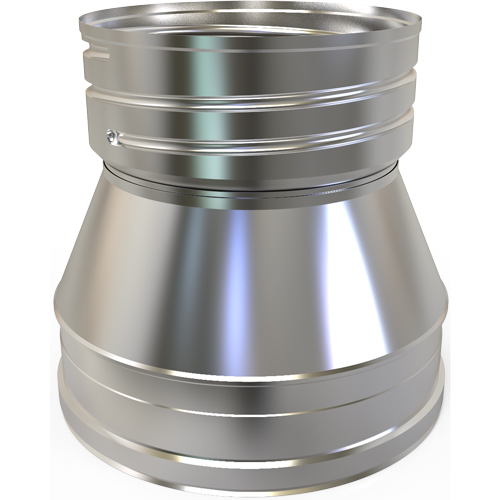

Flex to Twin Wall Adaptor – Ø 150 | Transition from Liner to TWPro (silver)

Description

Flex to Twin Wall Adaptor – Ø 150 | Secure Connection from Multi-Fuel Liner to TWPro

Ensure a seamless and secure transition between your MI-Flues multi-fuel flexible liner and TWPro system with our Flex to Twin Wall Adaptor – Ø 150. Designed for use within existing Class 1 chimneys, this adaptor guarantees no flex is visible outside the brick or clay chimney, maintaining the integrity and aesthetics of your installation.

• Screw-Fix Coupling: Easy and secure screw-on connection to the flexible flue liner, ensuring a tight and reliable fit.
• Ideal for Class 1 Chimneys: Transition must be made inside an existing Class 1 chimney to comply with safety standards.

Applications:

• Versatile Use: Suitable for solid fuel and gas/oil appliances, including woodstoves, gas coal effect fires, oil and gas boilers, and other solid fuel appliances.

Construction:

• Outer Skin: Made from durable 304-grade stainless steel with a 0.4mm thickness for enhanced strength and longevity.
• Inner Skin: Constructed from 316-grade stainless steel, 0.4mm thick, offering superior resistance to high temperatures and corrosion.
• Insulation: Features compressed rock wool insulation with a density of 200kg/m3, providing excellent thermal insulation.
• Welding: Fully welded parts ensure robust construction and a gas-tight seal.
• Safety Distance: Maintain a safe distance of 50mm from combustibles.

Approvals:

• HETAS Approved: Certified for safety and high performance.
• CE Marked: Complies with European safety standards.
• Designation Numbers:
  • EN1856-1 T600 N1 W V2 L50040 G50
  • EN1856-1 T200 W V2 L50040 O20
