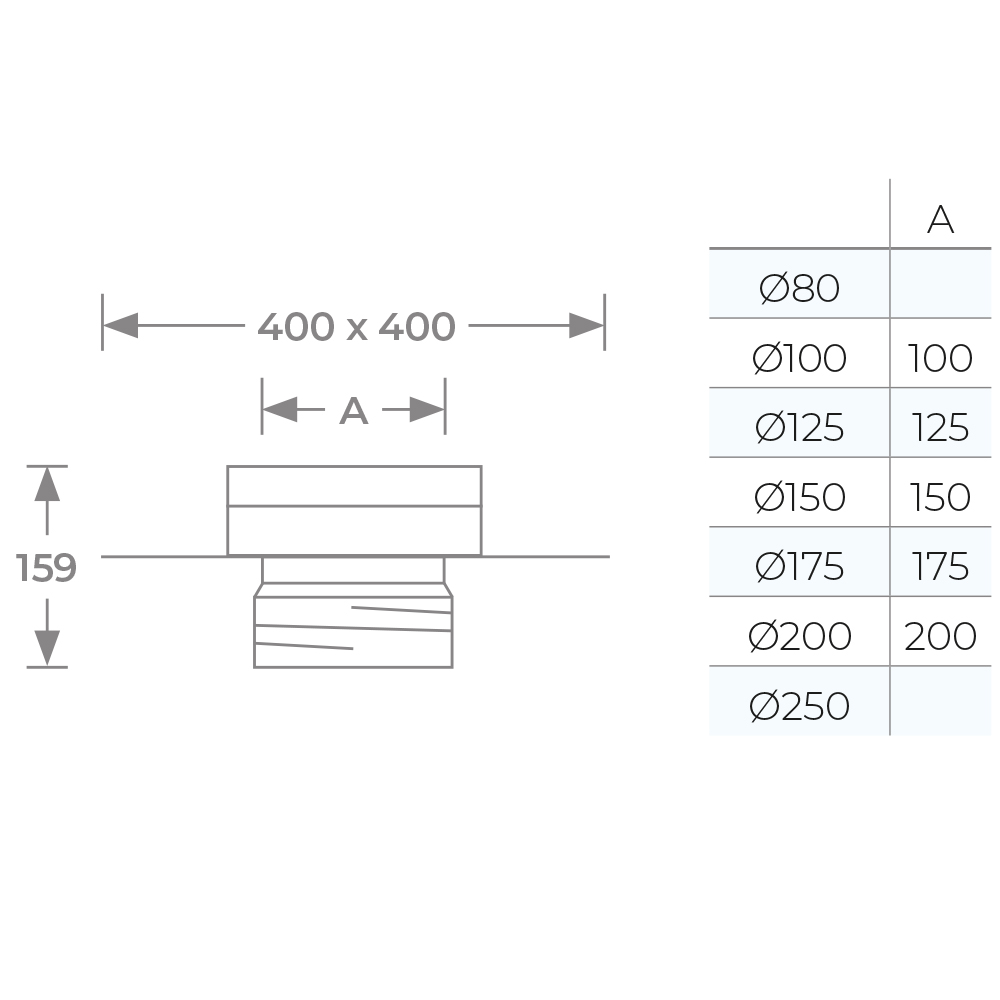

Chest Mounting Plate Ø 150 – Flue Liner Transition for Fuel/Gas/Oil
£ 99,00
Inner Material: 316L Stainless Steel – 0.40mm thick
Outer Material: 304 Stainless Steel – 0.40mm thick
Fuels: Wood, Oil, Gas, coal
Approvals: HETAS / UKCA
Distance to Combustibles: 60mm
Warranty: 12 Years
Description
Key Features
- MI-Flex to KC Transition: Provides a secure connection between MI-Flex liners and KC Twin Wall chimney systems.
- Lowered Stack Installation: Designed for use on top of a lowered existing chimney stack.
- Durable Construction: Made from 304-grade stainless steel with a fully welded design.
- Secure Connection: Compatible KC Twin Wall components are secured using a locking band.
- Approved & Compliant: HETAS-approved and UKCA-marked.
Installation
Secure the plate to the top of the lowered chimney stack and connect the KC Twin Wall system using a locking band. Maintain a minimum 60mm clearance from combustible materials.
Product Overview
The Chest Mounting Plate Ø 150 provides a secure transition from an MI-Flex liner to a KC Twin Wall chimney system. The transition is designed to be made within an existing Class 1 chimney stack.
