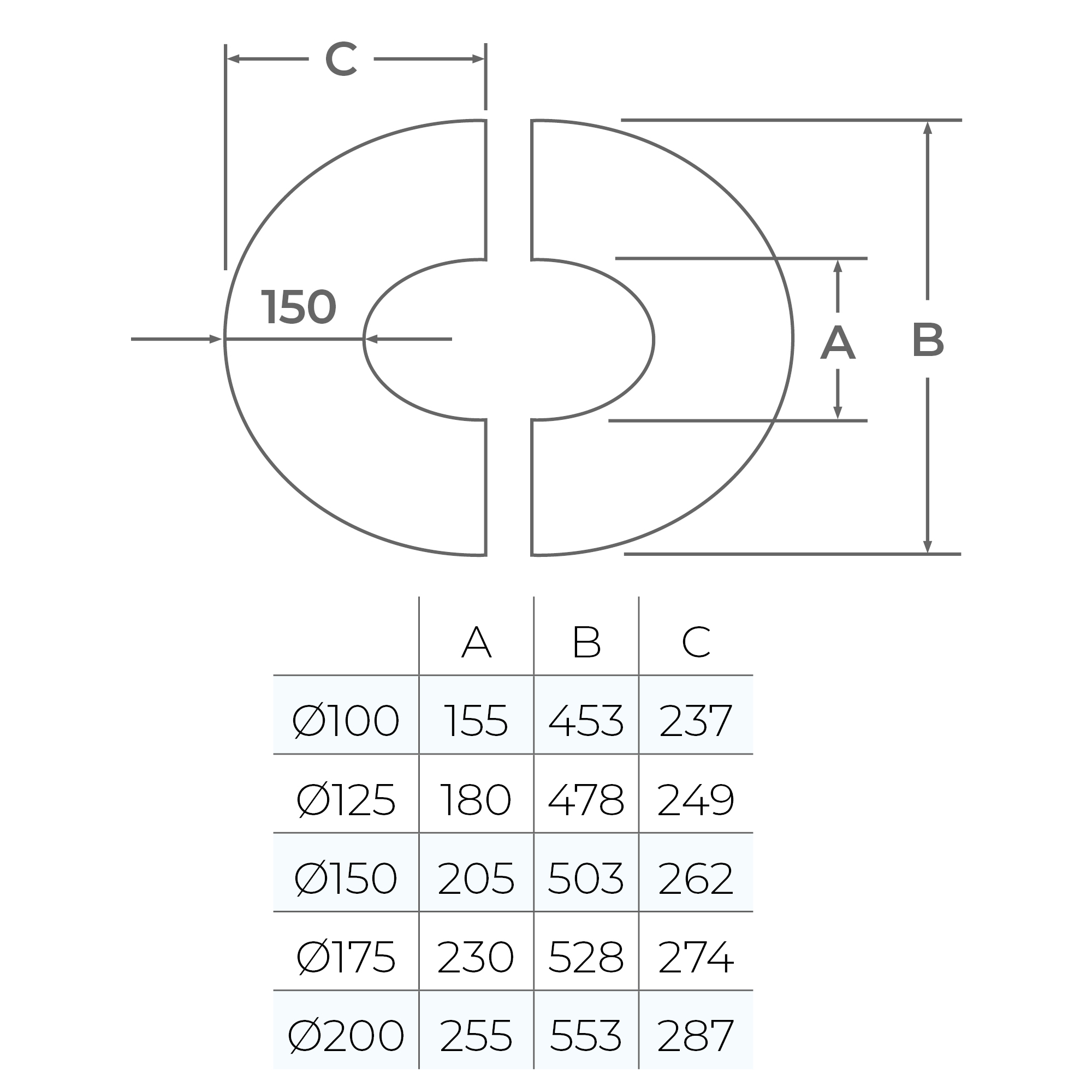

2-Piece Fixed Finishing Plate 90° Ø 150 | 150mm Wide
£ 48,00
For Flue Penetrations Through Non-Combustible Walls
Description
Key Features
- Fixed 90° Design: Designed for a neat finish around flue penetrations through non-combustible walls.
- Two-Piece Construction: Provides easy fitting and a clean finish around the flue.
- 150mm Wide: Offers extensive coverage around the flue penetration.
- Durable Construction: Made with 304-grade stainless steel outer skin and 316-grade stainless steel inner skin.
- Effective Insulation: Features compressed rock wool at 200kg/m³ (TWPro) or 128kg/m³ (KC).
- Safe Clearance: Maintains 50mm clearance for TWPro or 60mm for KC from combustible materials.
- Approved & Compliant: HETAS-approved and CE-marked.
Installation
Secure the two-piece plate to the wall using suitable silicone and screws. Maintain the required clearance from combustible materials.
Product Overview
The 2-Piece Round Fixed Finishing Plate 90° Ø 150 provides a clean and professional finish around 90° flue penetrations, with a 150mm-wide design for extensive coverage.
