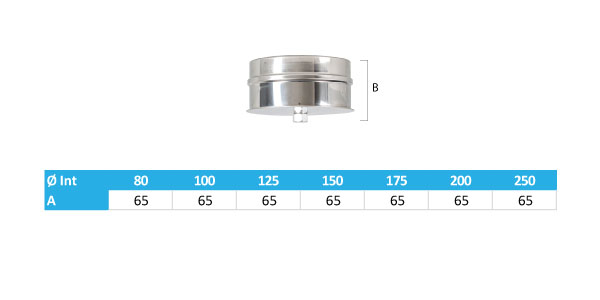

Tee Cap with Drain Ø 150 – Chimney Flue Cap with Integrated Condensate
£ 39,00
Inner Material: 316L Stainless Steel – 0.40mm thick
Outer Material: 304 Stainless Steel – 0.40mm thick
Fuels: Wood, Oil, Gas, coal
Approvals: HETAS / UKCA
Distance to Combustibles: 60mm
Warranty: 12 Years
Description
The Tee Cap with Drain Ø 150 is an advanced solution for sealing the bottom or unused end of a 90° or 135° tee in your chimney system. Featuring an integrated 10mm threaded drain, this cap allows for the easy removal of excess condensate, ensuring optimal performance and maintenance of your flue system.
Key Features:
- Integrated Drain: Includes a 10mm threaded drain for connecting a drain pipe, effectively managing and directing excess condensate away from the flue system.
- High-Quality Construction: Constructed with 304-grade stainless steel for the outer skin and 316-grade stainless steel for the inner skin, both 0.4mm thick. This ensures durability and heat resistance.
- Effective Insulation: Equipped with compressed rock wool insulation, boasting a density of 128kg/m³, maintaining a safe distance of 60mm from combustibles.
- Compliance and Safety: HETAS-approved and UKCA-marked, adhering to EN1856-1 T600 N1 W V2 L50040 G60 and EN1856-1 T200 P1 W V2 L50040 O20 standards for safety and performance.
- Ease of Maintenance: Facilitates easy removal for sweeping and access, making it easier to keep your chimney system in optimal condition.
Installation Guidelines:
- Maintain Clearance: Ensure the tee cap is installed with a minimum distance of 60mm from combustible materials such as wood or plasterboard.
- Secure with Locking Band: Use a locking band to firmly attach the tee cap, ensuring a tight seal and preventing leaks.
