Pipe 500mm Door (Non-condensing) Ø 150 / 6inch / Twin Wall Black Matt
£ 229,00

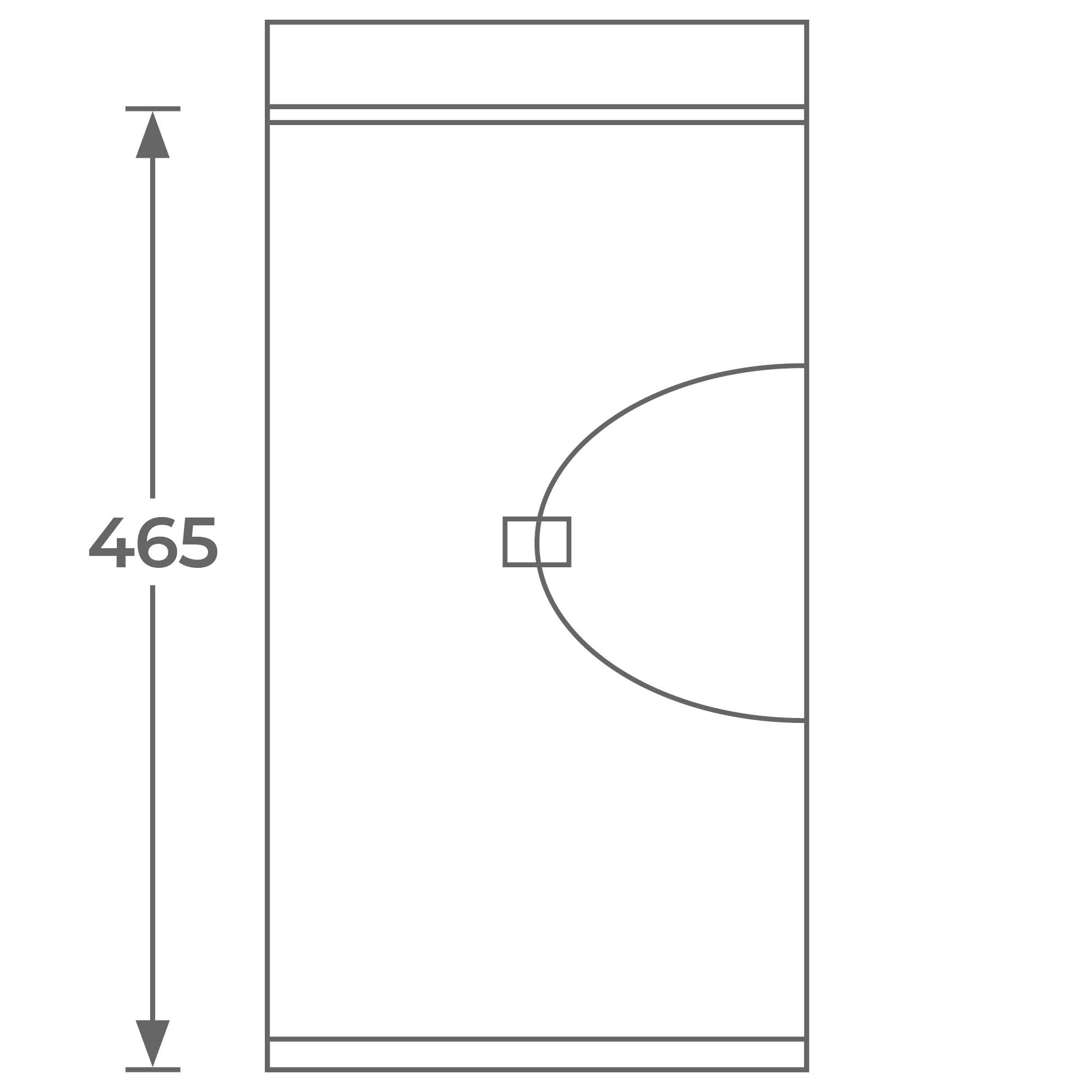

Sweeping access built into a 500mm pipe.
Description
Sweeping access built into a 500mm pipe, the pipe has an inner door and outer cover door allowing direct sweeping access to the inner flue way with easy access using locking clamps. This is a N1 pressure product.
APPLICATION: For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler, gas boiler and any solid fuel appliances.
CONSTRUCTION: Outer skin is made from 304 stainless Steel and is 0.4mm thick. This is then coated in a high temperature Black finish. The Inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool giving a density of 200kg/m³. All parts are fully welded.. Distance to combustibles is 50mm.
APPROVALS: TWPro is HETAS Approved and is CE marked.. Designation Number is. EN1856-1 T600 N1 W V2 L50040 G50.. EN1856-1 T200 P1 W V2 L50040 O20.
INSTALLATION: TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band (supplied).. Make sure that you keep a distance of 50mm from the outside of the flue to any combustible material (wood, plaster board).
