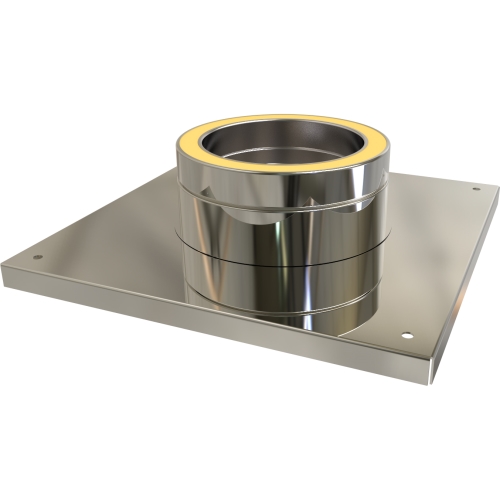

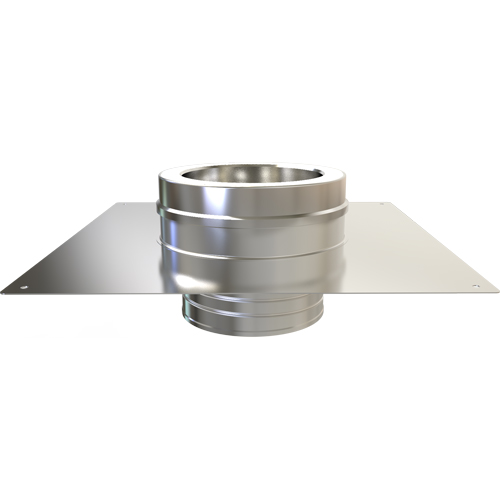

Chest Mounting Plate – Ø 150 | TWPro MB for Secure Chimney Installations
£ 115,00
Specifications:
- Diameter: 150mm
- Distance to Combustibles: 50mm
- Application: Ideal for use with solid fuel and gas/oil appliances to ensure a secure transition from flue liners to TWPro systems.
Description
Chest Mounting Plate – Ø 150 | TWPro MB for Secure Chimney Installations
The Chest Mounting Plate – Ø 150 from TWPro is an essential component for converting MI-FLEX flue liners to TWPro systems. Specifically designed for attachment to the top of a lowered chimney stack, this transitional plate ensures a secure and compliant installation. The transition from flexible liner to TWPro must occur within the existing Class 1 chimney stack.
Key Features:
- Specific Application: Facilitates the transition from MI-FLEX flue liners to TWPro systems.
- Installation Requirement: Must be installed within the existing Class 1 chimney stack.
- Versatile Use: Suitable for solid fuel and gas/oil appliances, including woodstoves, gas coal effect fires, oil boilers, and gas boilers.
Construction:
- Outer Skin: Crafted from 304 stainless steel with a thickness of 0.4mm.
- Inner Skin: Made from 316-grade stainless steel with a thickness of 0.4mm.
- Insulation: Compressed rock wool with a density of 200kg/m3.
- Welding: All parts are fully welded for maximum durability.
- Clearance: Maintains a 50mm distance to combustibles for enhanced safety.
Approvals:
- HETAS Approved: Certified to meet high-performance and safety standards.
- CE Marked: Compliant with European safety regulations.
- Designation Numbers:
- EN1856-1 T600 N1 W V2 L50040 G50
- EN1856-1 T200 P1 W V2 L50040 O20
Application:
The Chest Mounting Plate – Ø 150 is designed for a seamless and secure transition from MI-FLEX flue liners to TWPro systems. It must be installed at the top of a lowered chimney stack within the existing Class 1 chimney. This plate ensures the necessary clearance from combustible materials and complies with all relevant safety standards.
Ensure the safety and efficiency of your chimney installations with the Chest Mounting Plate – Ø 150. Its robust construction, compliance with safety standards, and specific design for transitioning flue systems make it an essential component for any professional installation.
