Adjustable Pipe 350-500mm Ø 125 – Flexible Flue with Ceramic Insulation

Description

The Adjustable Pipe 350-500mm Ø 125 is a high-quality, flexible chimney flue designed for use with both solid fuel and gas/oil appliances. This adjustable pipe offers exceptional versatility and durability, making it an ideal choice for various installation needs.

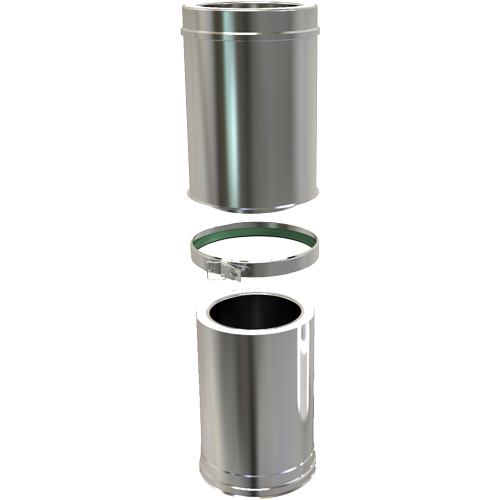

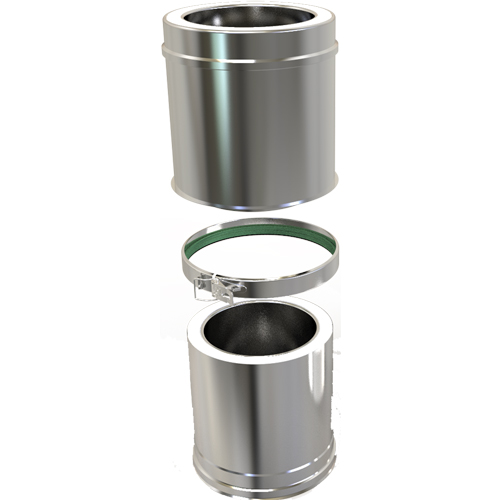

• Adjustable Length: The two-piece design of this pipe allows for an adjustable length range from 350mm to 500mm, providing a custom fit for your chimney system without compromising efficiency or safety.
• Ceramic Insulation: Includes a body-soluble ceramic blanket that can be trimmed to the desired effective length. The insulation is securely held in place with a locking band, eliminating the need for screws and simplifying the installation process.
• Premium Construction: Constructed with an outer skin of 304-grade stainless steel and an inner skin of 316-grade stainless steel, each 0.4mm thick, this pipe offers superior resistance to high temperatures and corrosion.
• Effective Insulation: Features compressed rock wool insulation with a density of 128kg/m³, maintaining a safe distance of 60mm from combustibles to enhance safety and heat efficiency.
• Regulatory Compliance: HETAS-approved and UKCA-marked, with designation numbers EN1856-1 T600 N1 W V2 L50040 G60 and EN1856-1 T200 P1 W V2 L50040 O20, ensuring the highest standards of quality and performance.
• Easy Installation: Secured using a locking band, the pipe integrates seamlessly with KC Twin Wall Insulated Chimney systems, offering a stable and secure connection with minimal effort.

Installation Guidelines:

• Maintain Clearance: Ensure a minimum distance of 60mm from the pipe’s outer surface to any combustible materials, such as wood or plasterboard, to comply with safety regulations.
• Adjustable Design: Easily customize the pipe length to fit your installation needs and secure it with the provided locking band for a reliable setup.
