Adjustable Base Support Ø 150 – Secure Vertical Chimney Support
£ 124,00
Inner Material: 316L Stainless Steel – 0.40mm thick
Outer Material: 304 Stainless Steel – 0.40mm thick
Fuels: Wood, Oil, Gas, coal
Approvals: HETAS / UKCA
Distance to Combustibles: 60mm
Warranty: 12 Years
Description
The Adjustable Base Support Ø 150 is an essential component for providing secure vertical support to your chimney system, whether installed internally or externally. Designed with versatility in mind, this base support offers a leveling adjustment range of 50mm to 80mm, ensuring a precise and stable installation on varying wall surfaces.
- Vertical Support: Provides crucial vertical support to the chimney, maintaining stability and alignment for safe and efficient operation.

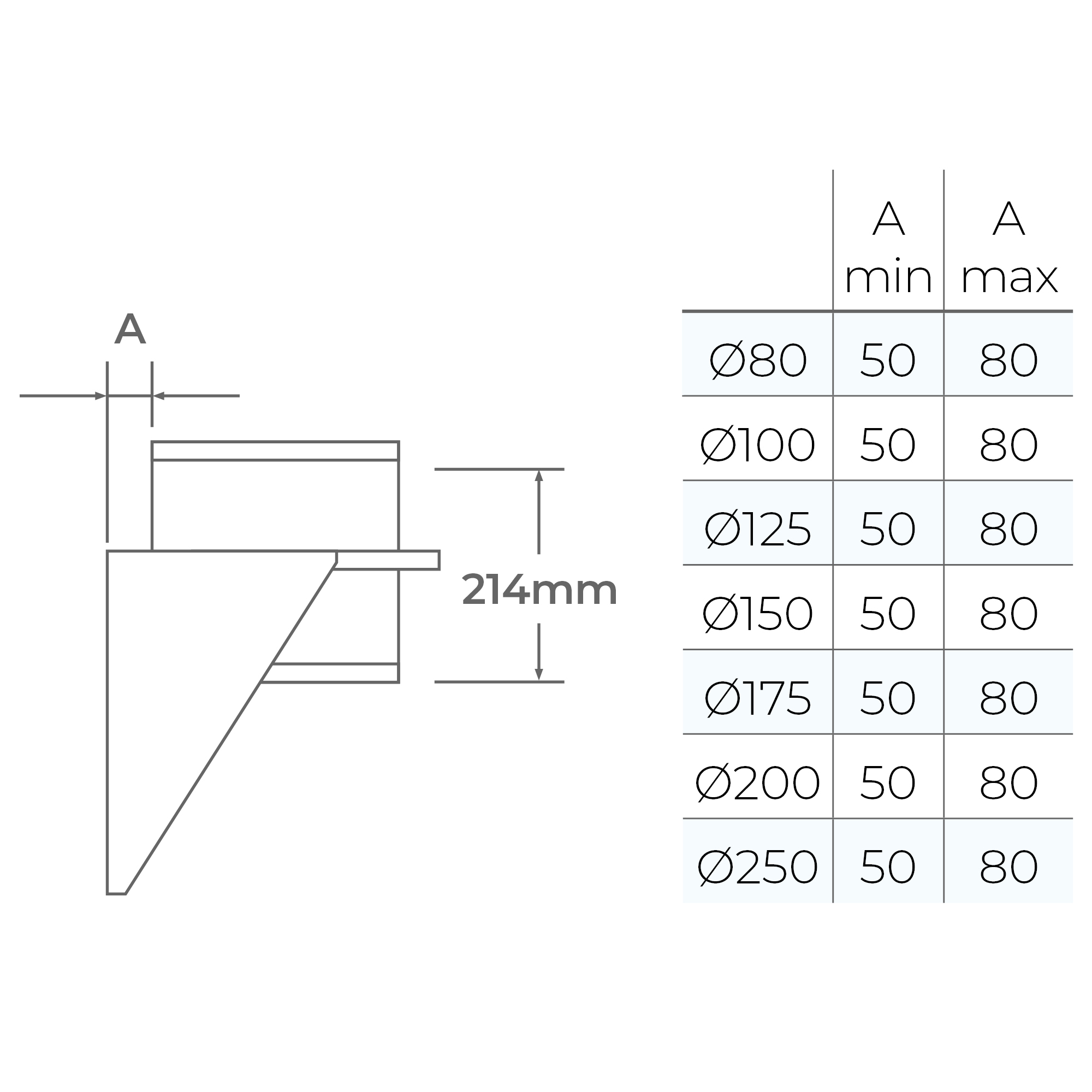

- Adjustable Design: Features a leveling adjustment range of 50mm to 80mm from the wall surface, accommodating installation requirements and ensuring a perfect fit.
- Robust Construction: Manufactured from high-quality 304-grade stainless steel with a thickness of 0.4mm, ensuring durability and resistance to environmental factors and high temperatures.
- Fully Welded: All parts are fully welded, enhancing the strength and integrity of the base support, and making it reliable for long-term use.
- Safety Compliance: Maintains a required 60mm distance from any combustible materials, such as wood or plasterboard, preventing fire risks.
- HETAS-Approved and UKCA-Marked: Complies with the highest safety standards, making it suitable for use with woodstoves, gas coal effect fires, oil boilers, and other solid fuel and gas/oil appliances.
Installation Guidelines:
- Precise Positioning: Use the leveling adjustment feature to position the base support accurately on the wall surface, ensuring vertical stability for the chimney system.
- Secure Fixing: Only recommended fixings should be used to attach the base support securely to the building surface, ensuring it can handle the load and stress of the chimney.
- Compatibility: This base support is designed to work seamlessly with KC Twin Wall Insulated Chimney parts, providing a unified and reliable chimney system.
- Clearance: Ensure a 60mm clearance from the outside of the flue to any combustible materials during installation.
