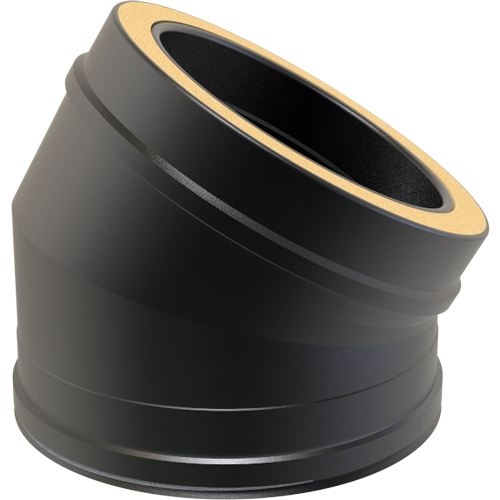

30° Bend Ø 125 – Stainless Steel Chimney Flue with Rock Wool Insulation
£ 51,00
Inner Material: 316L Stainless Steel – 0.40mm thick
Outer Material: 304 Stainless Steel – 0.40mm thick
Fuels: Wood, Oil, Gas, coal
Approvals: HETAS / UKCA
Distance to Combustibles: 60mm
Warranty: 12 Years
Description
The 30° Bend Ø 125 is an essential component for your chimney system, designed to create efficient directional changes. This 2-segment bend is suitable for use with both solid fuel and gas/oil appliances, offering high performance and durability.
Key Features:
- 2-Segment Design: The 30° Bend Ø 125 features a dual-segment construction, allowing precise adjustments in the chimney direction. For specific offset details, please refer to the dimensions tab.
- Durable Construction: Made with a 0.4mm thick outer layer of 304-grade stainless steel and an inner layer of 316-grade stainless steel, this bend ensures longevity and resistance to extreme temperatures and corrosion.
- High-Quality Insulation: Includes compressed rock wool insulation with a density of 128kg/m³, providing superior thermal insulation and maintaining a safe distance of 60mm from combustible materials.
- Approved and Compliant: The 30° Bend Ø 125 is HETAS-approved and UKCA-marked, adhering to rigorous standards with designation numbers EN1856-1 T600 N1 W V2 L50040 G60 and EN1856-1 T200 P1 W V2 L50040 O20.
- Secure Installation: Easily secure the bend in place using a locking band, ensuring a stable and reliable fit within your chimney system.
Installation Guidelines:
- Maintain Clearance: Ensure a minimum distance of 60mm from the outer surface of the bend to any combustible materials, such as wood or plasterboard, to comply with safety regulations.
- Locking Band: Secure the bend using the provided locking band to ensure a stable connection and proper function.
