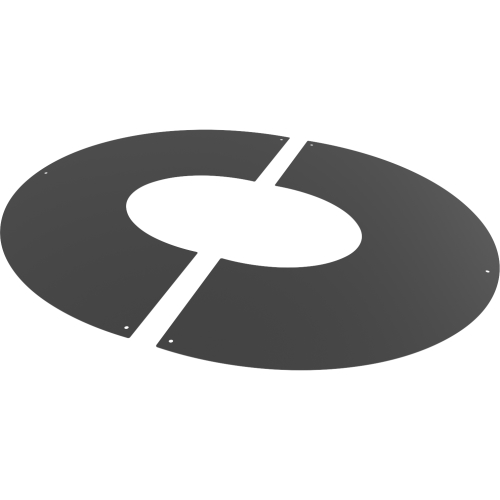

2-Piece Fixed Finishing Plate 45° Ø 150 | 150mm Wide
£ 51,00
For Flue Penetrations Through Non-Combustible Walls
Description
The 2-piece Round Fixed Finishing Plate 45° Ø 150 (150mm Wide) is engineered to provide a seamless and professional finish around flue penetrations through non-combustible walls at a fixed 45° angle. This two-part plate ensures an aesthetically pleasing installation for both residential and commercial heating systems.
- Two-Piece Design: Comes in two parts for a precise fit around the flue, designed specifically for installations at a fixed 45° angle.
- Enhanced Coverage: With a 150mm width, this finishing plate offers ample coverage to ensure a clean and tidy appearance around the flue.
- Durable Construction:
- Outer Skin: Made from 304-grade stainless steel, 0.4mm thick, providing excellent durability and resistance to the elements.
- Inner Skin: Constructed from 316-grade stainless steel, 0.4mm thick, enhancing corrosion resistance.
- Insulation: Features compressed rock wool with a density of 200kg/m³ (TWPro) or 128kg/m³ (KC), ensuring robust thermal insulation.
- Safety and Compliance:
- Clearance: Maintains a safety distance to combustibles of 50mm (TWPro) or 60mm (KC).
- Approval and Standards:
- TWPro: HETAS Approved, CE Marked, and compliant with EN1856-1 T600 N1 W V2 L50040 G50 and T200 W V2 L50040 O20.
- KC: HETAS Approved, CE Marked, and compliant with EN1856-1 T600 N1 W V2 L50040 G60 and T200 W V2 L50040 O20.
- Installation Instructions: Secure the plate to the wall using silicone and screws. The plate is 150mm wide, ensuring a comprehensive seal around the flue.
