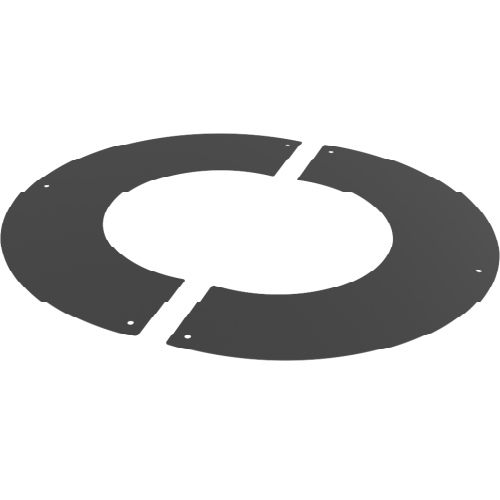

2-Piece Fixed Finishing Plate 45° Ø 125 | 75mm Wide
£ 29,00
For Flue Penetrations Through Non-Combustible Walls
Description
The 2-piece Round Fixed Finishing Plate 45° Ø 125 is designed to provide a polished finish around flue penetrations through non-combustible walls at a fixed 45° angle. This two-part plate ensures a secure and tidy installation, ideal for both residential and commercial heating systems.
- Two-Piece Design: The finishing plate comes in two separate parts, allowing for precise installation and adjustment around the flue at a fixed 45° angle.
- Effective Coverage: Ensures a clean and professional appearance around the flue as it passes through the wall.
- Premium Construction:
- Outer Skin: Made from 304-grade stainless steel with a thickness of 0.4mm, offering durability and resistance to external elements.
- Inner Skin: Constructed from 316-grade stainless steel, 0.4mm thick, for enhanced corrosion resistance.
- Insulation: Features compressed rock wool with a density of 200kg/m³ (TWPro) or 128kg/m³ (KC), ensuring excellent thermal insulation.
- Safety and Compliance:
- Clearance: Maintains a distance to combustibles of 50mm (TWPro) or 60mm (KC), meeting safety regulations.
- Approval and Standards:
- TWPro: HETAS Approved, CE Marked, and complies with EN1856-1 T600 N1 W V2 L50040 G50 and T200 W V2 L50040 O20.
- KC: HETAS Approved, CE Marked, and complies with EN1856-1 T600 N1 W V2 L50040 G60 and T200 W V2 L50040 O20.

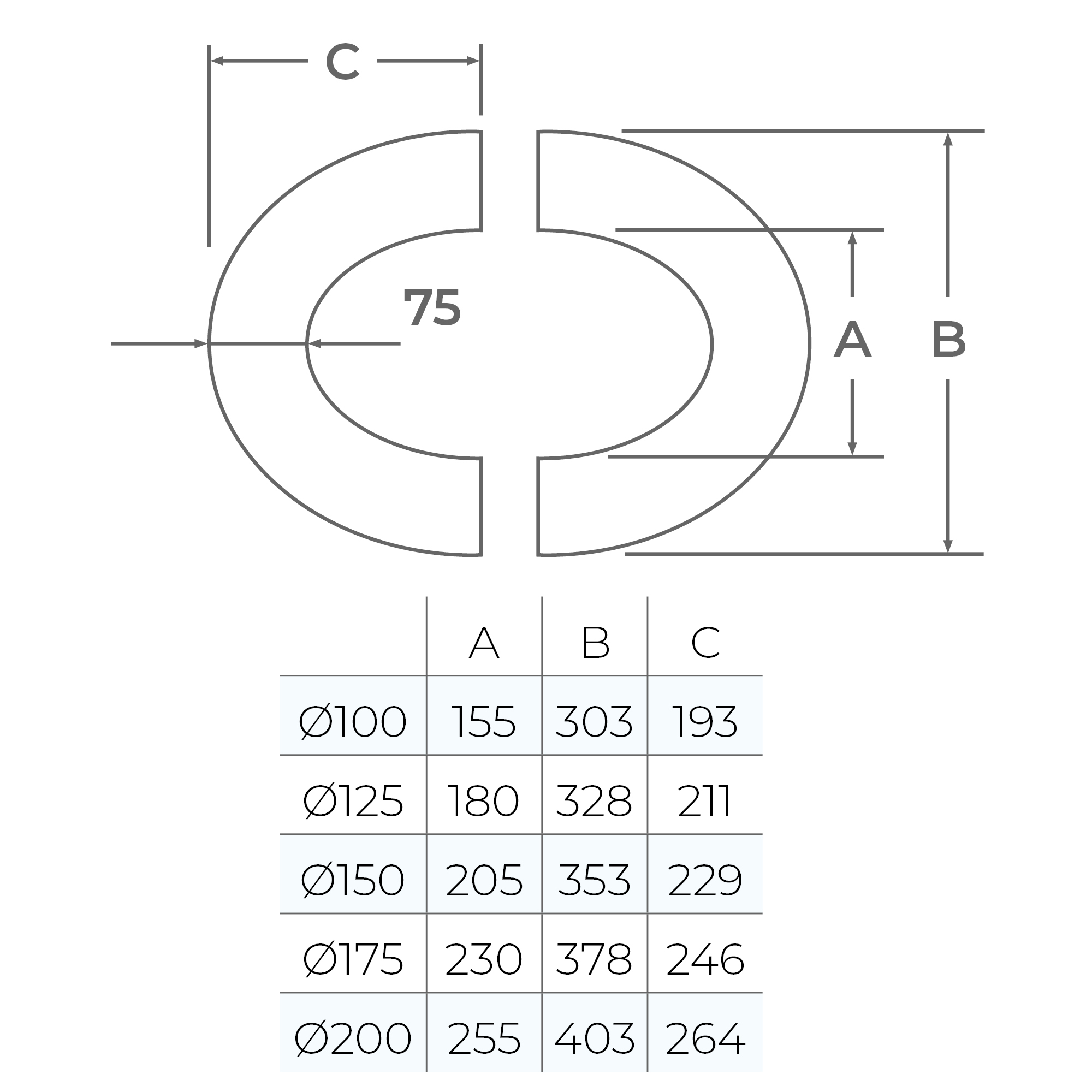

- Installation Instructions: Secure the plate to the wall using silicone and screws. The plate is 75mm wide, providing ample coverage and ensuring a tight seal around the flue.
