15° Bend – Ø 125 (5inch) | High-Quality Stainless Steel Flue Pipe Bend

Description

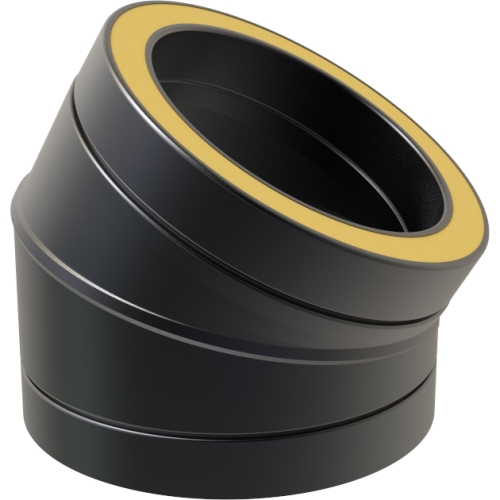

15° Bend – Ø 125 | High-Quality Stainless Steel Flue Pipe Bend

The 15° Bend – Ø 125 is an essential component for creating precise offsets in your flue system. Designed with a 2-segment bend, this high-quality flue pipe bend ensures optimal performance and durability. Ideal for both residential and commercial applications, this bend is suitable for a variety of heating appliances.

• 15° Bend: Provides a precise 15° angle for creating offsets in your flue system.
• Universal Application: Suitable for use with solid fuel and gas/oil appliances, including woodstoves, gas coal effect fires, oil boilers, gas boilers, and any solid fuel appliances.

Construction:

• Outer Skin: Made from 304-grade stainless steel, 0.4mm thick, with a high-temperature black finish for enhanced durability and heat resistance.
• Inner Skin: Constructed from 316-grade stainless steel, 0.4mm thick, ensuring superior resistance to high temperatures and corrosion.
• Insulation: Features compressed rock wool insulation with a density of 200kg/m³, providing excellent thermal performance.
• Fully Welded Parts: Ensures robust construction and a gas-tight seal.
• Safety Distance: Maintains a safe distance of 50mm from combustibles.

Approvals:

• HETAS Approved: Certified for high performance and safety.
• CE Marked: Compliant with European safety standards.
• Designation Numbers:
  • EN1856-1 T600 N1 W V2 L50040 G50
  • EN1856-1 T200 P1 W V2 L50040 O20

Application:

The 15° Bend – Ø 125 is designed for versatile use with various solid fuel and gas/oil appliances. Whether installing a woodstove, gas coal effect fire, oil boiler, or any other solid fuel appliance, this bend provides a secure and efficient connection for creating precise offsets in your flue system.
